New Design PU Injection FoamOil Soluble Polyurethane Grouting Material Oil-based Grouting Agent
Product Details:
| Place of Origin: | China |
| Brand Name: | LIHONG |
| Certification: | ISO9001,14001,45001,Halal certification,OU certification |
| Model Number: | Oil Soluble Polyurethane Grouting Fluid |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2mt |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Barrel 10L |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100MTS/ MONTH |
|
Detail Information |
|||
| Product Name: | Oil Soluble Polyurethane Grouting Fluid | Material: | Polyurethane |
|---|---|---|---|
| Appearance: | Liquid | Usage: | Grouting, Plugging, Waterproof |
| Transport Package: | Barrel 10L | Type: | Oil Soluble PU Grouting |
| The Shelf Life: | 9 Months | Coagulation Time: | 180～540s |
| Frothing Percentage: | 1000 | ||
| Highlight: | Oil Soluble Grouting Material,Oil-based Grouting Agent,Polyurethane Grouting Material |
||
Product Description
Single Component
Oil Soluble
Polyurethane Grouting Fluid
—
One-component polyurethane grout (Oil-soluble) is a kind of chemical grout material, which is formed by composite polymerization of polybasic alcohol and polybasic Isocyanate with isocyanate groups at the end. The material reacts with water immediately to produce gas, volume expansion and the formation of a water-insoluble and has a certain strength of the foaming body, can be waterproof leakage, more suitable for reinforcement.
This product is produced by our company through the introduction of advanced foreign technology. Polyurethane grouting material is a kind of high elasticity and toughness gel with low shrinkage and compact structure, which is polymerized after mixing with water and then rapidly foamed, expanded and solidified. This product has a very superior self repairing function by repeatedly foaming with water, and its waterproof and leak stopping effect is 2-3 times that of traditional leak stopping materials.
Product Features
—
1. Low viscosity, rapid foaming expansion after encountering water.
2. Fast foaming, high strength, no shrinkage.
3. Super-structure reinforcement, high expansion rate, good toughness, no shrinkage.
4. Suitable for single liquid high pressure grouting machine and other machines.
Fill the air leakage of the base material in the form of grouting,and treat the leakage problem from the root cause.
Under the action of the pressure of the grouting equipment,the penetration range can reach 3 meters, so there is no need for dense needles
Strengthened Oil Based Polyurethane Grouting Material.
Foam Eoually, High Density And Non Shrinking.
—
Performance
—
Industry standard: JL/T2041-2010
|
Number |
Test Items |
Standard Regulations |
Inspection results |
Single item evaluation |
|
|
|
Project Name |
Unit |
|||
|
1 |
Appearance |
|
Uniform Liquid,No Impurities,Non Layered |
Qualified |
|
|
2 |
Density |
g/cm3 |
≥ 1.05 |
1.132 |
Qualified |
|
3 |
Solidify time |
s |
≤ 500 |
450 |
Qualified |
|
4 |
Non-Volatile Content |
% |
≥ 78 |
83 |
Qualified |
|
5 |
Viscosity |
mPa.S,25℃ |
≤ 200 |
180 |
Qualified |
|
6 |
Frothing percentage |
(%) |
≥ 1600 |
2300 |
Qualified |
|
7 |
Compressive strength |
MPa |
≥6 |
10 |
Qualified |
Central control indicators
—

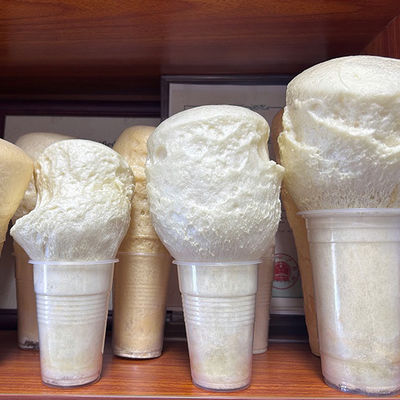

Take 25g of the sample and pour it into a 450ml paper cup. Add 1g of water and stir quickly until foaming begins. Start timing when the foam height no longer rises. Stop timing when the foam height stops rising. If the height from the cup mouth to the top of the foam is greater than 3cm and the foaming time is 3min to 9min, and the foam does not shrink after 30min, it is judged as qualified.
All picking indicators
—
| Serial | Testing items | Ⅰ | Ⅱ | Ⅲ |
| 1 | Appearance | Uniform Liquid, No Impurities,Non Layered, | ||
| 2 | Viscosity(mPa.S,25℃ ) | 100 ～ 200 | 100 ～ 200 | 100 ～ 250 |
| 3 | Density(g/cm3) | 1.05 | ||
| 4 | Coagulation time (s) | 180 ～ 540 | ||
| 5 | Non-volatile content(%) | 78 | 78 | 80 |
| 6 | Frothing percentage(%) | 1000 | ||
Application
—
1. Fill Tunnel, Subway, dam, basement and other cracks, the actual masonry of all the contact surface.
2. It can be used for injection in hydraulic fracture, and it can be used with catalyst to finish foaming quickly. Contact with the water can be fully expanded foam, effective water plugging, reinforcement and reinforcement.
Note
—
1. Wear protective equipment (such as gloves, goggles) during construction to avoid direct contact with the skin, if there is contamination should be washed with plenty of water.
2. This product is stored in a cool place, construction must pay attention to ventilation and away from the source of fire materials not solidified before the construction area away from open fire.
Product packaging
—
1. Stored in clean, dry and sealed iron drums
2. Transport according to regular product requirements, prevent rain, exposure, squeezing, and collision, and ensure that th packaging is intact.
3. The product should be stored in a ventilated, dry and cool place, away from direct sunlight and rain. The storage temperature should not be higher than 40℃.
4. Under normal storage conditions, the shelf life is 9months.
Differences in grout
—
Have You Ever Had These Problems
| Type | Water soluble | Oil soluble |
|
Features
|
High water content, high water inclusion rate, small shrinkage, fast speed
|
Large expansion rate, no shrinkage,good stability and fast speed
|
| Reaction time | 10-60second | 3-6minutes |
| Waterproof Features |
Reacts with water to produce CO2 gas, forming a solid
|
Reaction with water,
forming 10-30 times foam
|
|
Defect
|
For a long time, the water is easy to evaporate, and the foam is easy to shrink
|
The reaction rate is slower than that of water-soluble ones. |
|
Advantage
|
Fast response, no corrosionand damage to RC structuresand steel bars, and low price | No shrinkage, good stability, no corrosion damage to RCstructure, relatively high price |
|
Applicationrange
|
It is used for building basements, subways, tunnels, hydropower dams, petroleum and coal mining, etc. lt plays the role of reinforcement, anti-seepage and water blocking.
|
It is used for deformation cracks in the basement of buildings, structural joints of construction joints, waterproof plugging and reinforcement of the inner walls of tunnels in subway and tunnel projects, and reinforcement of railway roadbeds. |
